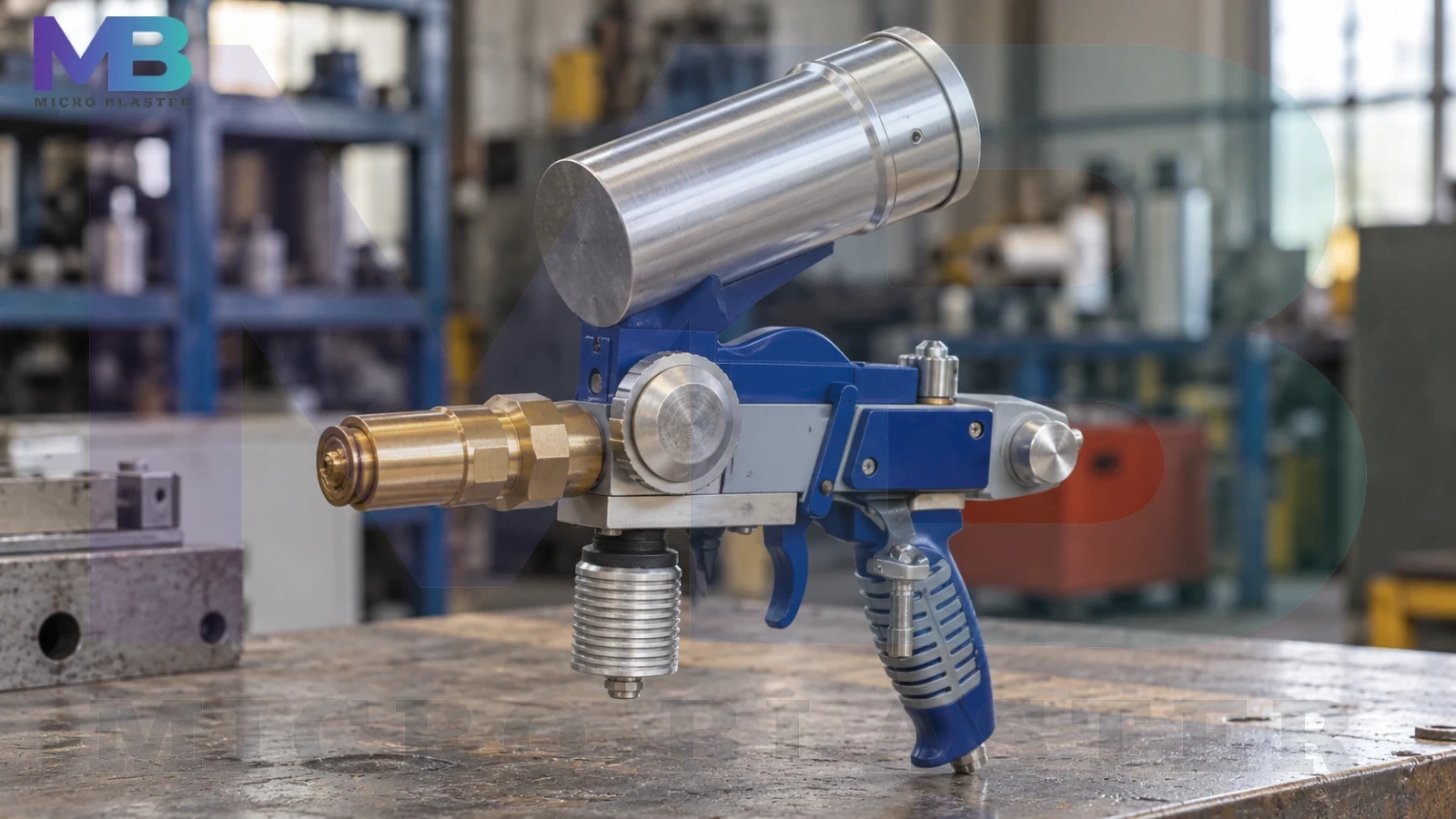

Powder Flame Spray Gun
The powders are fed and propelled using a unique system in the powder flame spray gun. The powder is fed by gravity through a metering valve and sucked at reduced pressure into an aspirator chamber; from there, the powder is driven through the flame, melting and depositing as a coating on the object.
The Flame (or Combustion) Powder Spray (powder flame spray gun) process works a comparable technique as the Flame Spray Gun method, but the wire feedstock is replaced by a powder.
The main benefit of this method is that a much wider variety of materials (such as nickel or cobalt-based self Fuxing composites or ceramic substances) can be easily treated into powder form providing a greater choice of coatings. Many compounds are difficult or cannot be presented in a wire form and for this purpose, it was produced.
The method relies on the chemical reaction between oxygen and combustible combustion to produce a flame source. This flame source produces a gas stream by temperature in excess of 3,000°C with correctly balanced conditions between oxygen and acetylene.
The feedstock material to be spattered is fed into the flame in the form of a powder to melt and the thermal extension of the flaming is then used to atomize and stimulate the particles onto the component.
| Body Material | Stainless Steel & Iron |
| Cup Capacity | 550 ml |
| Nozzle Size | 0.3 mm |
| Air Pressure | 30-50 psi |
| Air InletAir Inlet | 1/4″ |
Typical coatings
Main purposes
When a material is flame-sprayed, new and complex material is produced. This is the basis that the quality of the thermal spray coating depends upon the quality of the powder. A slight variation in powder chemistry can greatly influence the property of the last coating. The particle size distribution in a powder can change the density plus porosity of the coating. Our Powders meet excellent examples of chemical composition, particle shape & size, flow rate & purity.
We offer a complete Combustion Powder flame Spray gun (Systems). The Flame Powder Spray Guns are specifically engineered production flame spray systems. The Flame Powder Spray Systems can be configured for both hand-held or machine-mounted/robotic procedures.
We supply all required equipment to optimize the use of a Flame Powder Spray System, including:
The 5PS-II is a very efficient plus versatile, handheld, Powder Spray Gun for flaming powder spray that can be used to apply coatings for a type of treatment such as dimensional remodeling, surface improvements, corrosion protection plus wear resistance.
With its built-in powder feed canister, a thermal spray system utilizing the 5PS-II powder flame spray gun is an attractive choice for workshops with occasional surfacing activity or when an economical expenditure is required.
The 5PS-II is suitable for all-purpose use in that it can apply a wide variety of coating materials such as self-fluxing composites, ceramics, self-bonding elements, and conventional materials such as mild steels, stainless steels, bronze, aluminum-based, and nickel-based alloys. Designed for handheld operation, the 5PS-II is lightweight and operates a handle for operator comfort and safety. A tool post attachment is also included to rest the gun during workpiece changeover.
The 6PS-II powder flame spray guns can be practiced to apply premium coatings to resolve several surface difficulties including machine component repairs, dimensional reconstruction, corrosion strength, abradable, and wear resistance. Economical to operate, the 6PS-II series guns have high spray rates with low gas consumption and high deposit efficiencies can be obtained.
The 6PS-II gun range is fit for all-purpose use in that it can apply a wide range of coating materials such as self-fluxing compounds, ceramics, self-bonding elements, and common materials such as MS, SS, bronze, aluminum, and nickel alloys. A regular and accurate supply of powder is fed from the PF-700 Powder Feeder to the gun enabling you to mount or manually spray in practically any position without changing the powder feed rates.
Micro Blaster is a Manufacturer of Powder Flame Spray Gun for Sale in India. We are also the Supplier of Thermal Spray Gun, Metalizing Gun, Flame Spray Gun, Sand Blasting Machine, Sand Blasting Cabinet, Grit Blasting Machine, & Shot Blasting Machine at an affordable price.
