Plate Cleaning Shot Blasting Machine

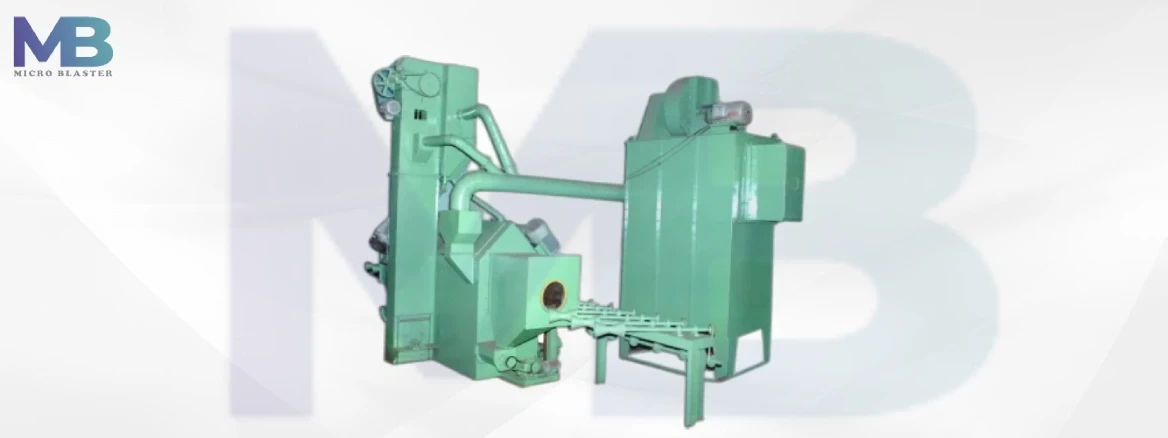

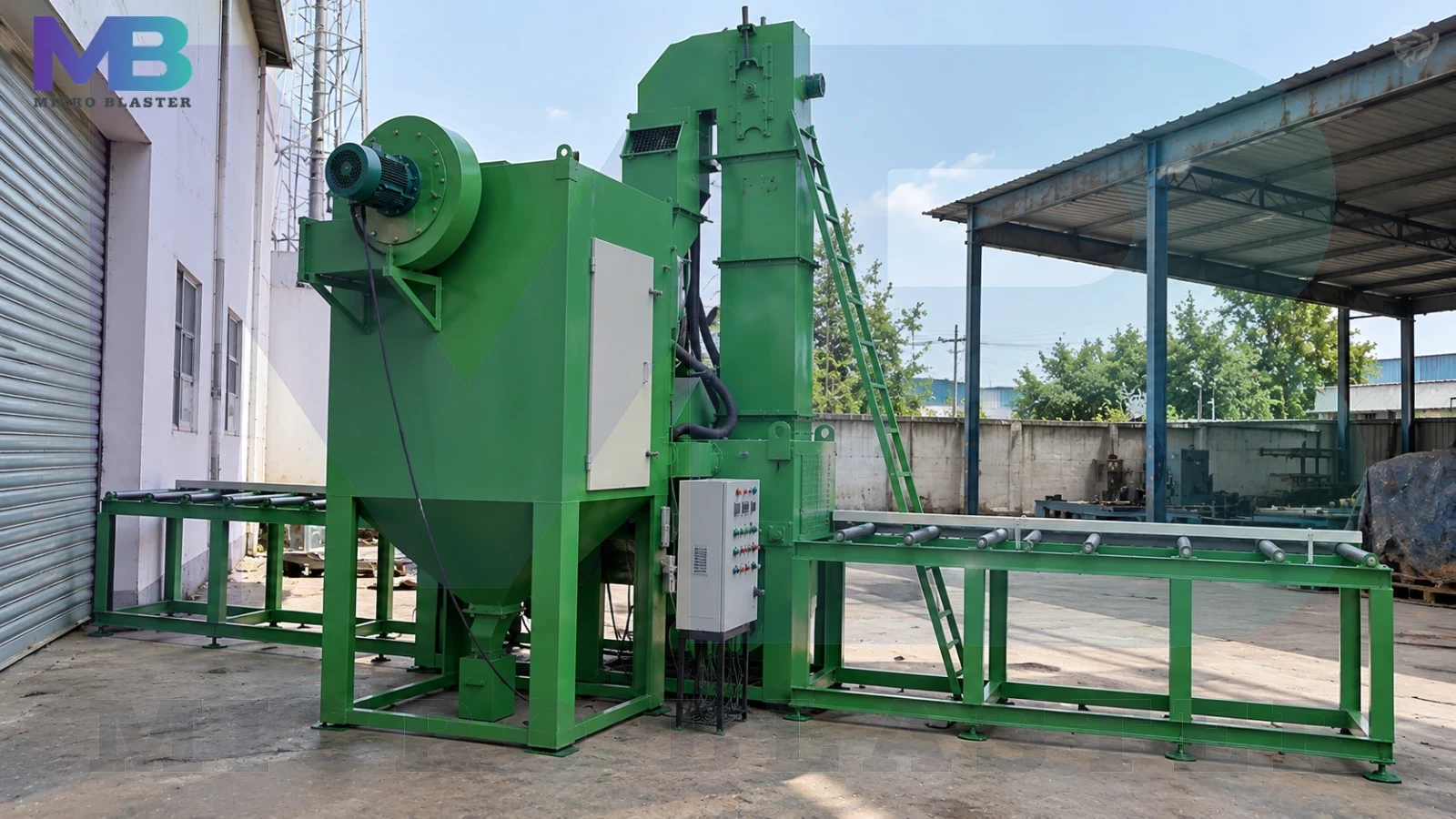

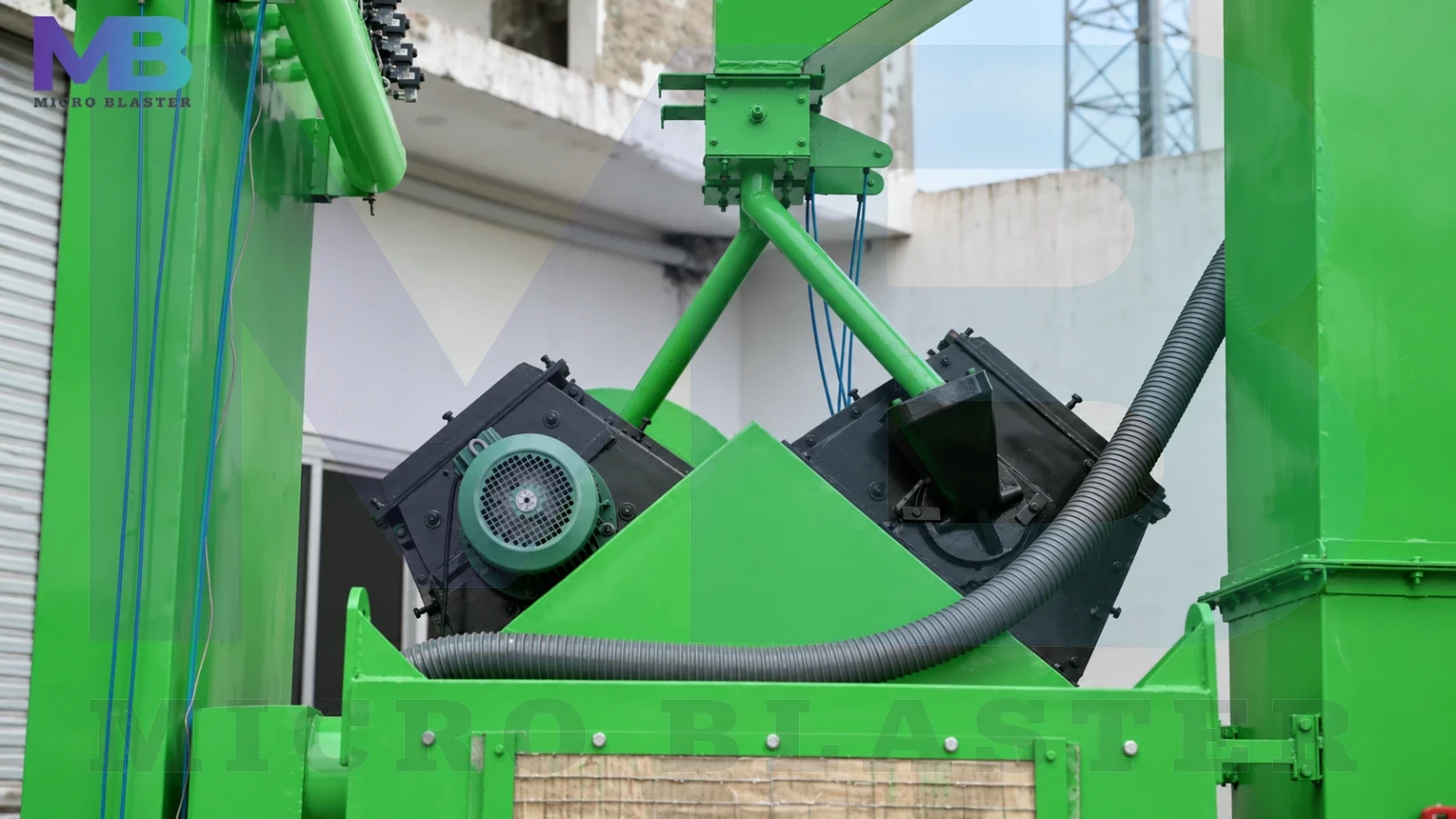

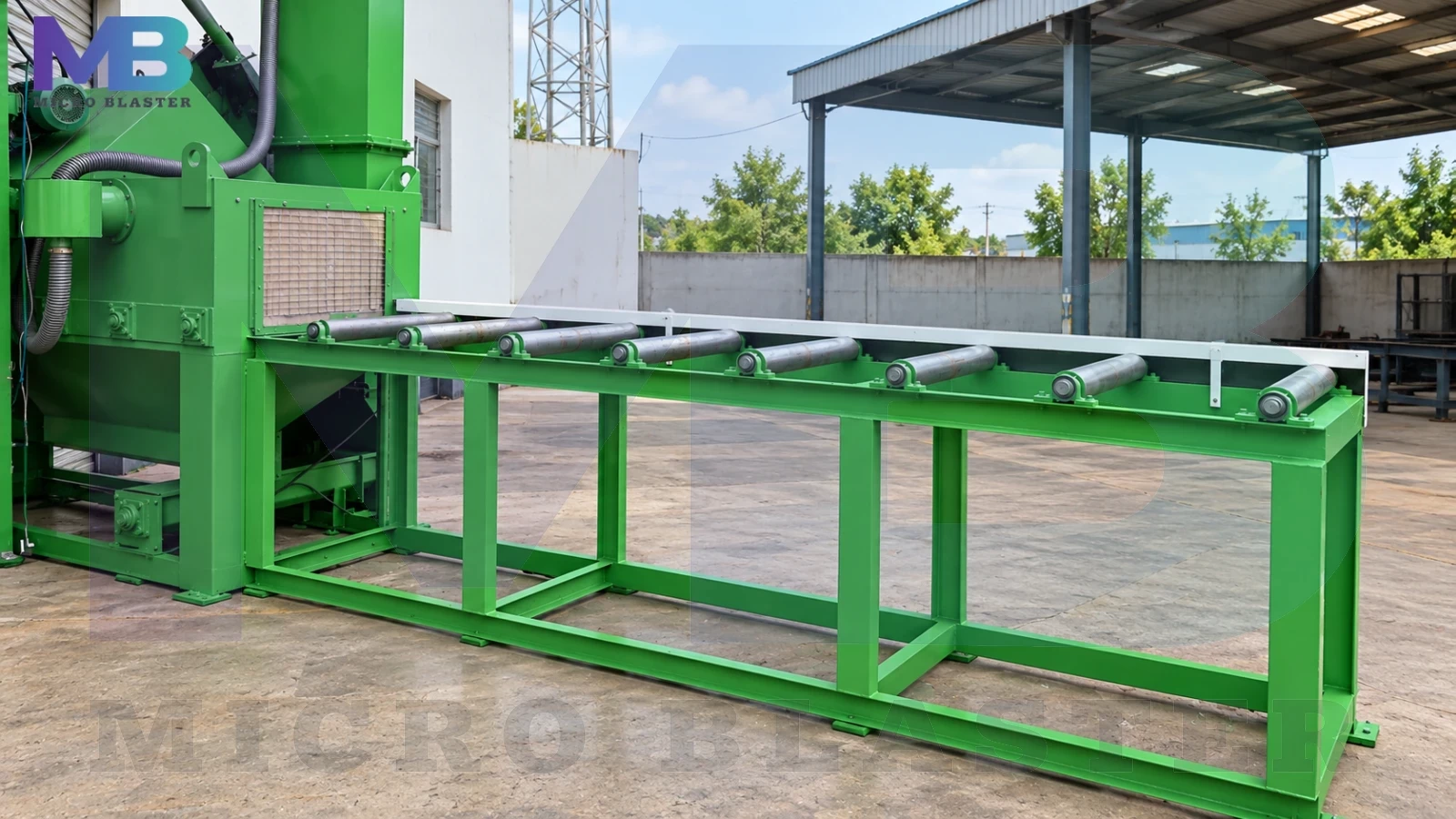

Plate Cleaning Shot Blasting Machine consists of multiple centrifugal blast wheels each of them driven by individual motors to give a thorough cleaning. The jobs kept on a suitable conveying system with varying velocities flexible according to the working environment. The job enters the blast cabinet for cleaning from abrasive material also known as media fired by multi wheels for providing homogenous finishing. The fully shot-blasted components come out from the exit of the shot blasting cabinet. These machines are perfectly equipped with abrasive media recovery and cleaning systems, a Dust Collector, a control panel, and rubber or other material lining to handle the wear of the machine.
The Blasting Cabinet is lined with High Manganese Tiles in an overlap style for easy replacement if any problem occurs. For protection purposes, the perforated manganese cast sheet is placed above the screw conveyor line. Various Shot Blast rubber curtains are afforded in the inlet and outlet Vestibules to stop escaping abrasive material from the machine. The Rollers are marked with replaceable High Manganese Steel inside the Blast Cabinet.
For the Safety features, service Doors are provided in the Blast Cabinet. When the job is in Blast Cabinet to avoid unnecessary blasting of the job, the Sensor is provided at Vestibules for starting Blast Cycle. To cover Shot Blasting of end faces of fabricated components blast Wheel 4 Nos. / 6 Nos. are fitted in the Blast Cabinet. For transferring shots to Rotary Screen Separator a suitable capacity Elevator is used and it can be customized according to the need of a customer. The Rotary Screen Separator cleans the abrasive media and removes oversized as well as dust particles and only a particular sized Shots are allowed to insert in the Blasting Wheels.

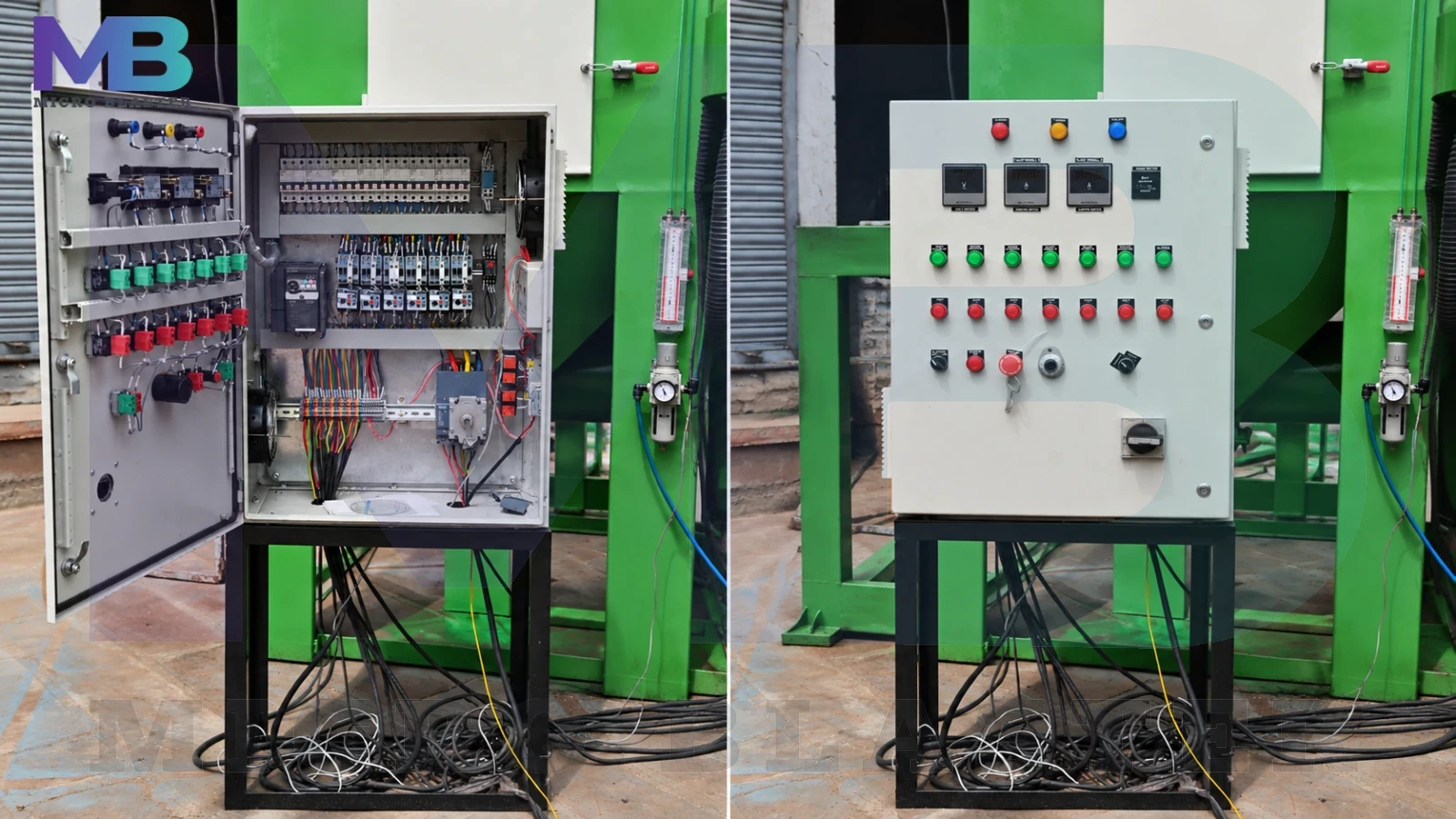

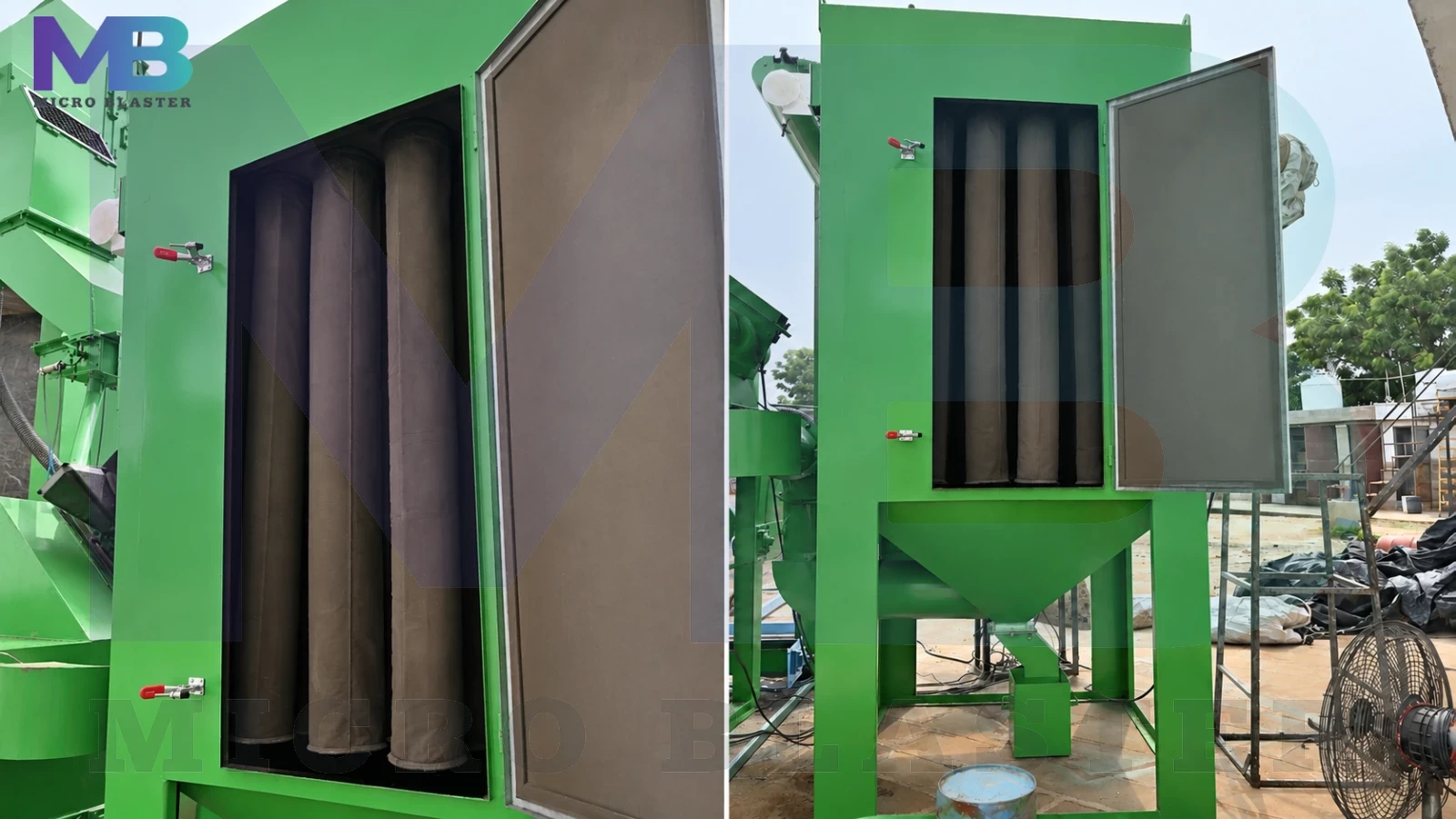

All Blast Wheel Stations are begetting an included type shot valve for regulating quantum of shots to the blast wheel system. A dust collector of reverse pulse jet type is designed and used for the continuous heavy-duty operation of the plate shot blasting machine. The main function of Dust Collector is to keep Blast Cabinet ventilated and to remove dust particles flying in the cabinet and differentiate small-sized shots from abrasive media which can’t be reused again. The operation of the entire plate shot blasting machine is sequentially programmed by PLC mounted in Control Panel. The PLC shows the working status of the machine, which includes no. of Hours Machine run for maintenance necessary and various Trouble Shooting requirements. PLC Program can be made as per Customer’s requirement.
The plate blasting machine is fit for shot blast cleaning of pre-designed elements for buildings & automobile structures etc. Plate shot blasting machine has the capability of imparting surface finish SA-2.5 & SA-3. This machine can be combined with the painting line as per the customer’s requirement. The loading and unloading system for the process can also be provided as per Customer’s requirement as it can be done manually or with the help of machinery.
Micro Blaster is one of the best Plate Cleaning Shot Blasting Machine in India. Our well-qualified and experienced team assures clients’ satisfaction with consignments that need special care during storage and packaging. We can help you to get the best fit particular and suitable shot blasting machine for the best results & performance. We also manufacture sand blasting machine, shot blasting machine, portable shot blasting machine, thermal spray gun, portable sand blasting machine. We provide all types of shot blasting machine, abrasive media, metalizing, and coating equipment to our customers with superior quality and low price.
