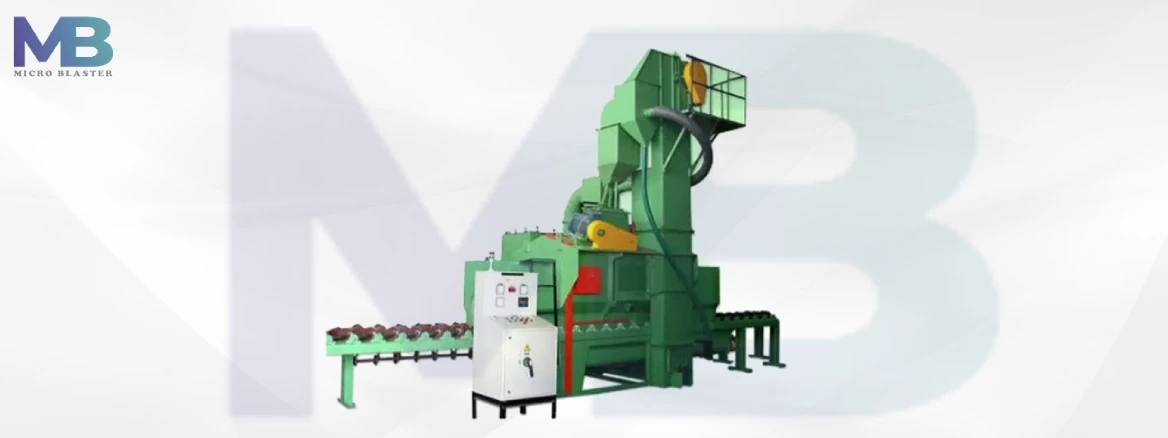

Pipe Cleaning Shot Blasting Machine

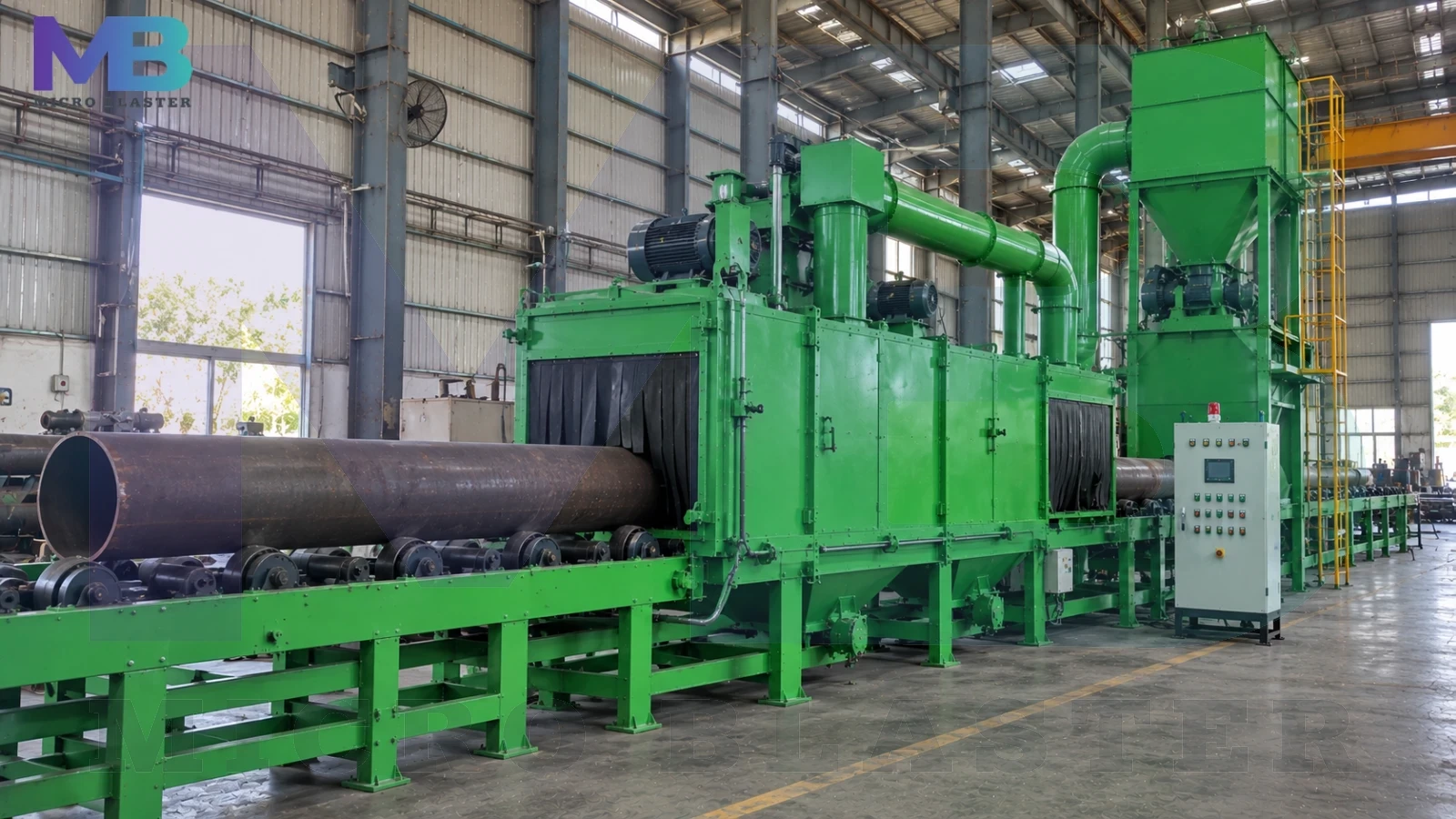

In the Steel Pipe Cleaning Shot Blasting Machine or pipe descaling equipment, the pipe is kept on the inward side of the Screw conveyor unit. The pipes are transferred into the work chamber of pipe blasting equipment. The work chamber houses 2 Nos. of bottom-mounted blast wheel station which fires abrasive material from the bottom side of the rotating pipe. The pipes properly shot blast cleaned while they are passing through the blast stream area. The pipes come out from the outlet portion of the pipe descaling equipment and are removed manually.
The conveyor velocity is varying in pipe descaling equipment. The steel pipe shot blasting machine is provided with one opening inlet and one outlet vestibule. According to the size of the pipe blasting machine sufficient no. of rubber, the curtain is provided to trap escaping of abrasive shots. The entire pipe blasting equipment is ventilated with the help of a powerful Pulse Jet type continuously operated Dust Collector.
The two types of pipe blasting procedure. We give both Internal Pipe Blasting (Cleaning) and External Pipe Blasting (Cleaning). In an internal pipe blasting procedure, the internal pipe cleaning tool is connected with Air Operated Portable Shot Blasting Machine. This Internal pipe blasting process is both automatic and manual. The nozzle of the internal pipe cleaning tool is rotating by air. While in External Pipe blasting procedure it can be done by airless shot blasting machine and Air Operated shot blasting machine.
In a pipe blasting machine having two blast wheels, these blast wheels are positioned at the bottom and top side of the pipe blasting machine. The entire cabinet is lined with Manganese Steel Tile. The inlet and outlet side cabinet (pipe blasting equipment) is provided through the suction rubber curtain of different sizes matching different OD of the pipe.
Rubber curtains prevent escaping of shots from pipe blasting equipment. The entire pipe shot blasting machine is properly ventilated by a powerful Pulse jet type Dust Collector.
The pipes are kept on the inner side of the screw conveyor unit and are taken into a blast chamber where a blast wheel abrasive media to clean the surface of the pipe and is thus thoroughly blast cleaned in pipe blasting machine. This cleaned blasted pipe comes out from the outlet portion of the conveyor belt from where the pipe is taken out from pipe blasting equipment to a suitable place.
Micro Blasters plans and makes completely robotized upblast or downblast Pipe Machines for surface profiling and eliminating rust and plant scale from welded steel pipe. The pipe should be cleaned and without dust before the covering cycle.
Micro Blasters works with clients to decide their necessities and will think about numerous components, including:
Micro Blasters work intimately with covering producers to guarantee legitimate plant profile is accomplished to give the best adherence of covering.
The pipe is passed on through the wheel shot blasting machine on an uncommonly planned outer slant move type material taking care of the system. A broad scope of high creation impact cupboards is accessible to deal with from 5cm (2″) to 366cm (144″) measurement pipes at variable cleaning speeds.
Micro Blasters pipe machines incorporate an air wash and residue assortment framework that cooperate to eliminate impurities and fines, control dust, and keep them upright grating size.
