P7 150

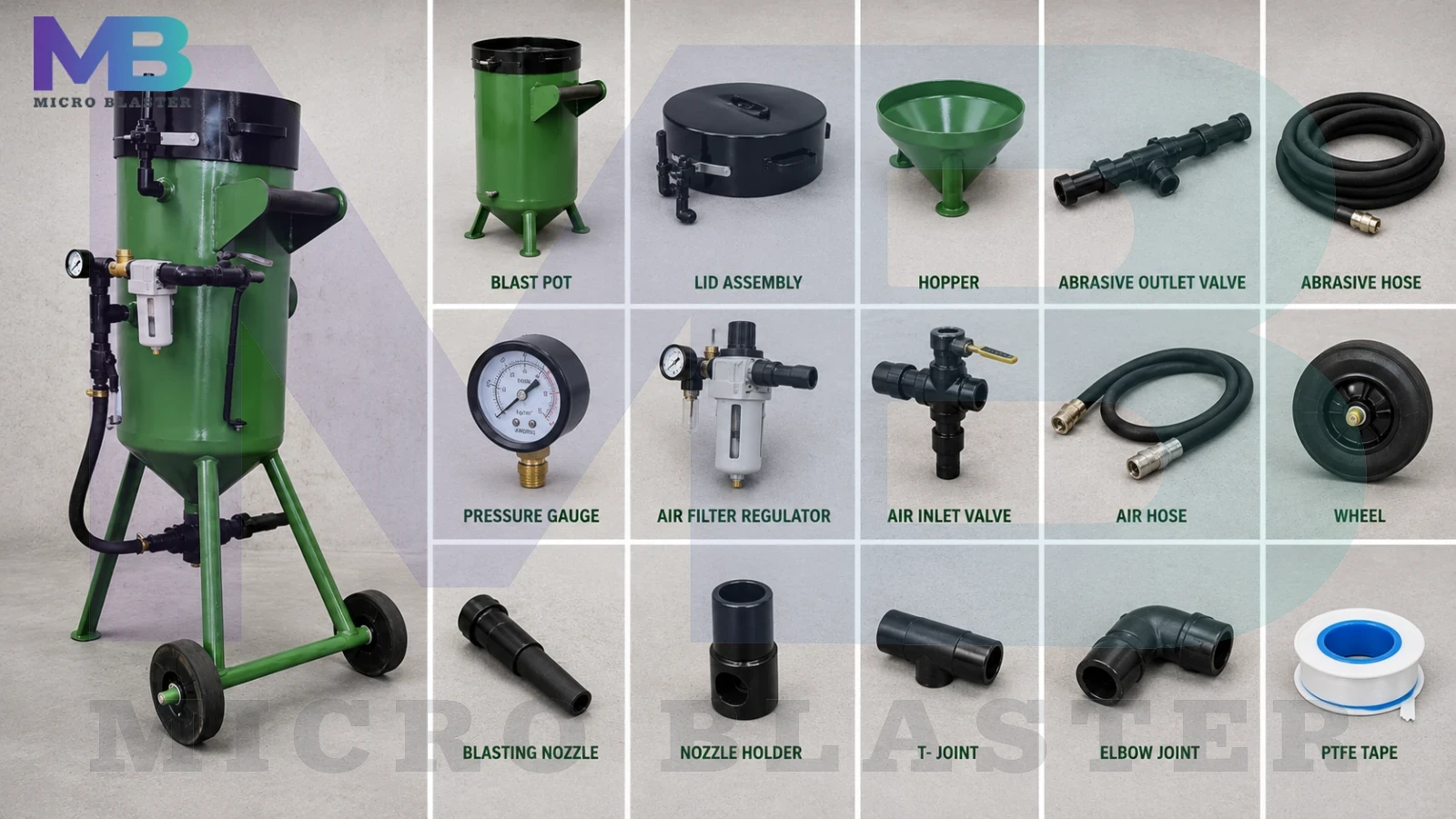

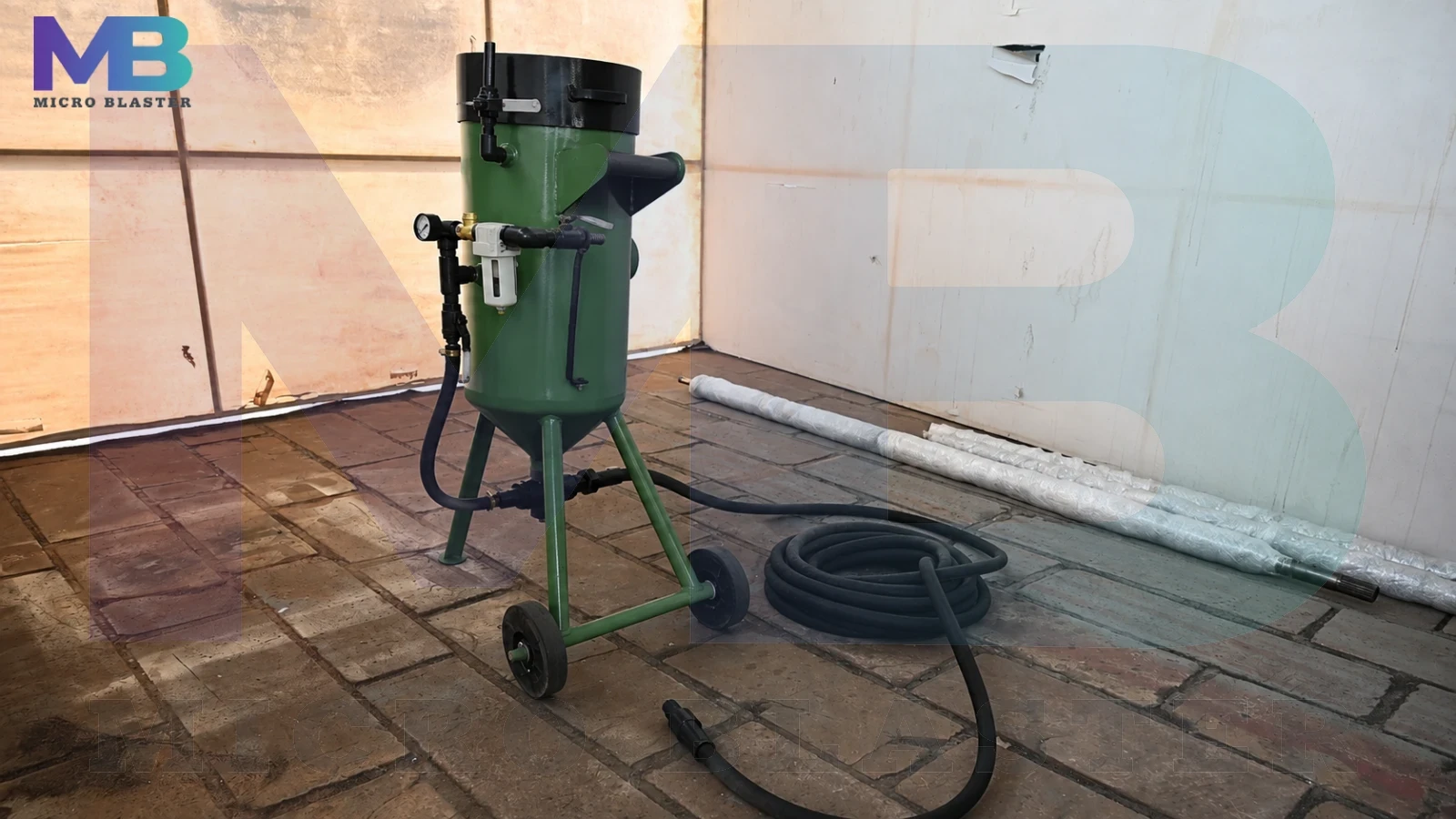

Mini portable grit blaster P7 150 or mini Grit Blaster is typically powered by a grit blasting air compressor and the mini grit blasting machine is named so because of its small-sized pot. Initially switch starts the air compressor. The air compressor provides a large volume of high-pressure air to sandblasting equipment. thegrit blaster air compressor provides a large volume of high-pressure air that is controlled by the Solenoid valve or ball valve. Solenoid valves are used wherever fluid and airflow are to be controlled automatically.
After that Non-return valve is used for providing safety to the moisture separator. the ball valve is controlled by the operators manually (On/Off). Portable grit blasting Equipment is pressurized, tank filled with grit blasting grit, and used to allow an adjustable amount of grit blasting grit into the main blasting Pipe. Grit blaster nozzle is connected by two pipe one is connected through the air compressor directly and the second pipe is a mixture tube connected by blaster pot.
In blaster pot filled Abrasive material flow by air pressure and pushing on the substrate surface by the nozzle. and the second pipe is used in the nozzle for fast pushing the abrasive material on the substrate surface. Fully equipped mini Portable grit blaster P7 150 are often found mounted on wheels, offering high mobility and easy transport from site to site.
It is also known as portable grit blasting equipment. Grit blasting Nozzle is at the starting of grit blasting hose on Portable grit Blaster.
| Abrasive Tank Capacity (Metallic) | 150 kg |
| Abrasive Tank Capacity (Sand) | 65 kg |
| Volume | 42 Ltrs |
| Std. Blasting Hose Length | 5 Mtrs |
| Blasting Hose I.D. | 19 mm |
| GritBlasting Nozzle Orifice | 5 or 6 mm |
| Height | 1111 mm |
| Diameter | 361 mm |
| Weight | 95 kg |
| Air Filter & Pressure Gauge fitted | 1 No.Each |
| Automatic Exhaust Valve fitted | 1 No. |
| Abrasive Control through Pinch Valve fitted | 1 No. |
| Approx. Cleaning Rate [Only for guidance] | 4-7 Sq. Mtrs./Hr. |
| Compressed air required at 80 psi. | 60 cfm |
| Recommended Abrasive Size | 25 to 80 Mesh. |
Mini Grit Blaster is typically powered by a grit blasting air compressor and the mini grit blasting machine is named so because of its small-sized pot. Blaster is the best Portable Grit Blasting Machine manufacturers in India and suppliers in Jodhpur, India. All kinds of grit blasting machine, shot blasting machine, Sand Blasting machine are manufactured and exported all over India by us. Contact Us today for the latest price of portable grit blaster P7 150 Machine.
