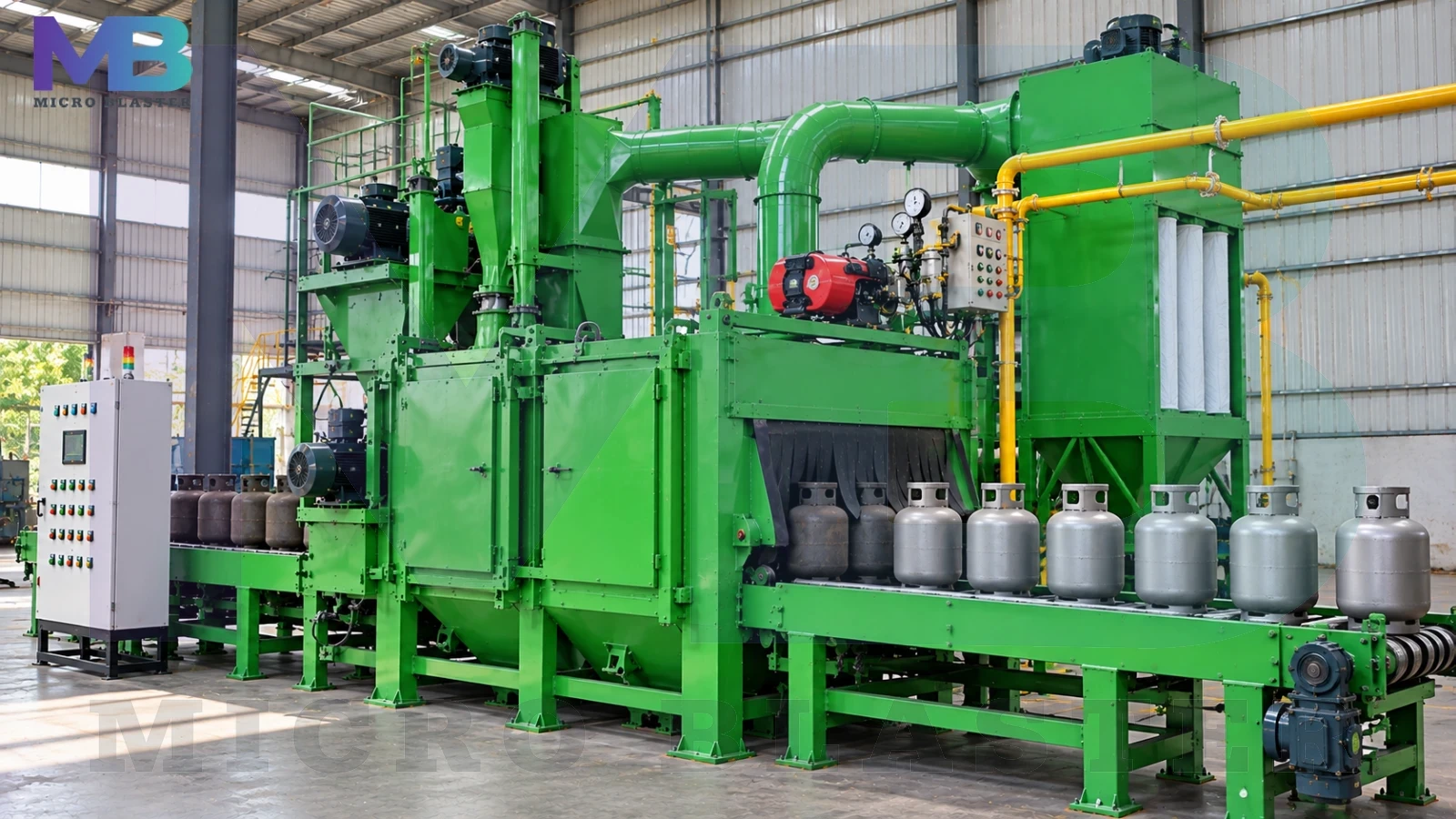

LPG & CNG Shot Blasting Machine
LPG & CNG Shot Blasting Machine is easy to operate with the smallest maintenance and the operator has to load and unload the cylinders on rotating diabolic rollers. The outside surface of the metallic LPG & CNG Gas Cylinder Shot Blasting Machine requires to be blast cleaned to remove rust, and corrosion and prepare the LPG & CNG cylinders surface for thermal coating and painting.
It is used to automatically clean or etch the surface of the steel cylinders by blasting abrasive media coming from blasting wheels. The steel LPG & CNG cylinders receive shot blasted as they pass through the blasting chamber. The cylinders also get rotated on the rollers as they pass through to the blasting chamber to get cleaning of the complete surface.
| Technical Specification | Model S-800DB | Model S-400DB |
| Size of Blast Wheel | 191/2” x 21/2 | 191/2” x 21/2” |
| No. of Blast Wheel | 2 Nos. | 1 No. |
| Power of Blast Wheel | 15 HP X 2 Nos. | 15 HP X 1 No |
| Shot Flow Rate/Minute/wheel | 150 kg. | 150 Kg |
| Shot Velocity (Mtr./Second | 65-75 | 65-75 |
| Shots Consumption Rate | Approx. 0.13 Kg/hp/hr | Approx. 0.13 Kg/hp/hr |
a) Cabinet
| (i)Length: | 2500mm | 2000 mm |
| (ii) Width | 1200 mm | 1200 mm |
| (iii) Height | 1600 mm | 1600 mm |
b) Overall Dimension of Machine with Dust Collector
| (i)Length: | 9000 mm | 8000 mm |
| (ii) Width | 4500 mm | 4000 mm |
| (iii) Height | 5000 mm | 5000 mm |
c) Dimension of Dust Collector
| (i)Length: | 1850 mm | 1350 mm |
| (ii) Width | 1350 mm | 1350 mm |
| (iii) Height | 3600 mm | 3600 mm |
d) Ground space required for machine
| (i) Length | 9000 mm | 8000 mm |
| (ii) Width | 4500 mm | 4500 mm |
| Dust Collector Capacity | 3000 cfm | 2000 cfm |
| Motor HP for Dust Collector lower | 7.5 H.P. | 5 H.P. |
| Filter cloth area of Dust Collector | 48 Sq. Mtr. | 36 Sq. Mtr. |
| Conveyor System | Dia bola type | Dia bola type |
| Job Movement | Cylinders while moving forward also rotates. | Cylinders while moving forward also rotates. |
| Bucket Elevator (Size) | 600mm x200mm | 600mm x200mm |
| Bucket size : (i) Length : | 125 mm | 100 mm |
| (ii) Width : | 125 mm | 75 mm |
| (iii)Height : | 90 mm | 83 mm |
| Total power requirement | 44.0 H.P | 25.0 H.P |
| Control Panel | Centralized Desk type Panel | Centralized Desk type Panel |
| Noise Level | 80-85 dB (A) at 3 Mtr. From machine | 80-85 dB (A) at 3 Mtr. From machine |
| Cleaning Standard | SA 2.0 to SA 2.5 | SA 2.0 to SA 2.5 |
| Environmental Effect | Green Machine | Green Machine |
| Foundation | Pitless | Pitless |
Features of LPG & CNG Cylinder Shot Blasting Machine:-
Blaster is the largest shot blasting machine (LPG Shot Blasting Machine & CNG Shot Blasting Machine) manufacturer in India, (Rajasthan, Jodhpur). LPG & CNG Shot Blasting Machine supplies effective services and solutions for many manufacturing industries based on their demands.
We are also provide services in all cities like – (Jodhpur, Bhiwadi, Jaipur, Alwar, Noida, Ghaziabad, Agra, Mumbai, Pune, Kolhapur, Faridabad, Gurgaon, Solapur, Madurai, Coimbatore, Kolkata, Chennai, Bangalore) at low cost, at best price with the best quality. Contact Us today for latest price of shot blasting machines.
