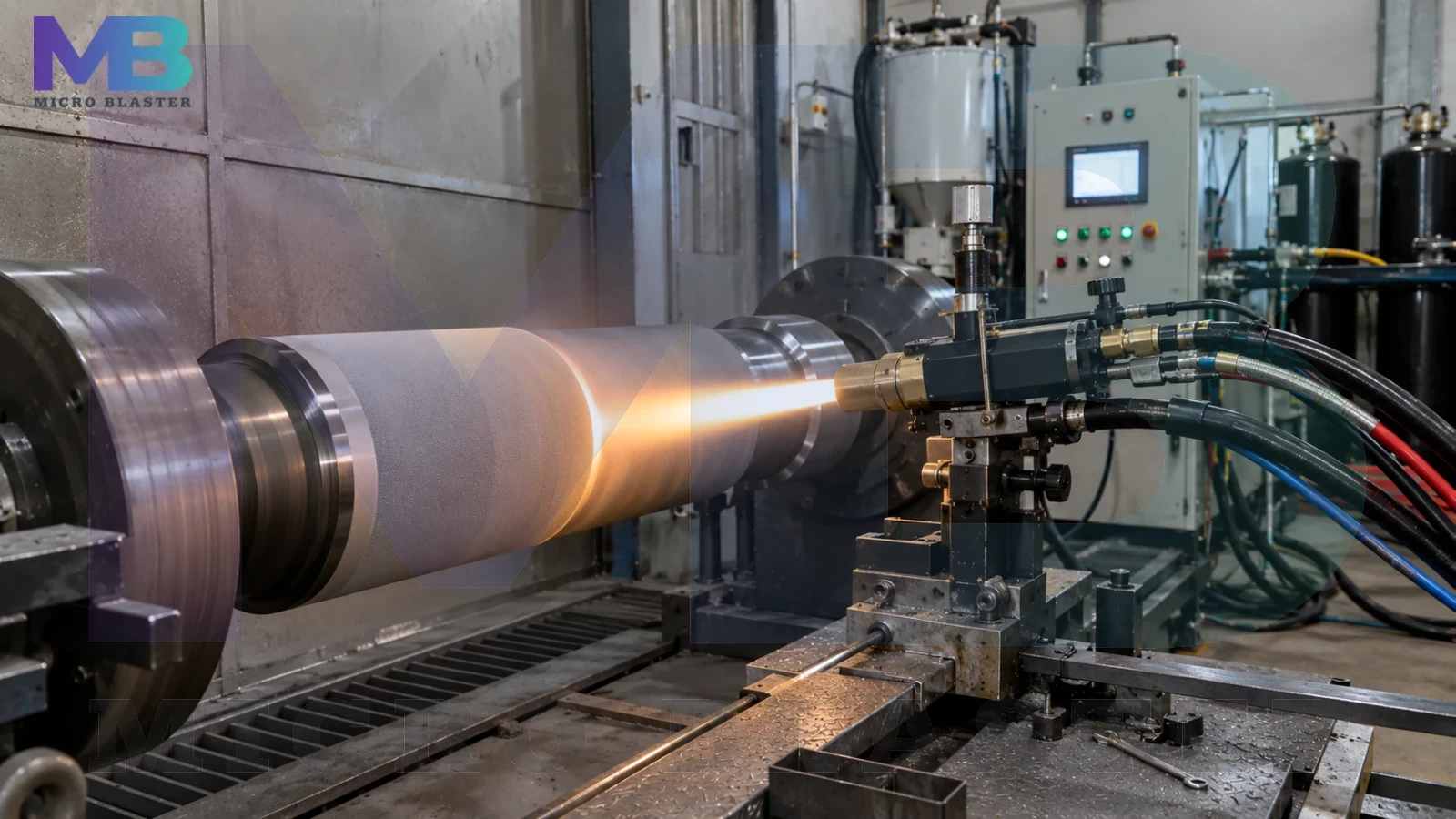

HVOF COATING PROCESS
HVOF spray gun is used for a high-temperature application, chemical resistance, erosion, wear resistance sliding, and abrasive.
In HVOF a mixture of gaseous or liquid fuel with oxygen is fed into a combustion chamber combusting continuously and ignited.
Medical, e.g. biocompatible hydroxyapatite coatings on orthopaedic and dental implants.
Electronics, e.g. dielectric coatings for electrical insulation in power hybrid circuits and heating elements.
A high-energy flame is used in the High-Velocity Oxygen Fuel Gun (HVOF) coating process to drive particles onto a substrate at high speeds. This procedure produces a thick, firmly adhering covering with improved wear resistance, corrosion resistance, and thermal insulation.
Surface Preparation: To guarantee optimal adherence of the coating, the substrate surface is carefully cleaned and prepared. This could entail using methods like grit blasting to clean, degrease, and occasionally roughen the surface.
Coating Material: The intended qualities and application requirements are taken into consideration while choosing the coating material. Ceramics, metal alloys, and silicon carbides are typical materials.
Powder Delivery System: The preferred coating substance is often available as a powder. A powder delivery system that properly distributes the powder and regulates flow rate receives the powder.
Combustion Chamber: Fuel gas (such as hydrogen or propane) and oxygen are burned in the combustion chamber. High-velocity flame is created when fuel gas and oxygen are combined.
A high-energy flame is produced during the mixture's ignition, which raises the temperature to a point where the powder particles may melt.
The high-velocity flame is used to inject the cromium powder particles, which accelerates them to extremely high speeds. The combustion conditions, nozzle layout, and powder properties all affect how quickly the particles accelerate. Supersonic speeds can be reached via particle velocities.
Particle Impact: The accelerated particles have a large kinetic energy impact on the substrate surface.
Bonding Mechanism: When the particles collide with the substrate, their high kinetic energy causes them to flatten out and form a strong mechanical connection.
Multiple Passes: To achieve the appropriate coating thickness, the coating process is normally carried out in several passes. Each pass entails coating the substrate with a layer of particles and letting them adhere to it.
Rapid Cooling: The coating layer quickly cools and solidifies as a result of the particles' high-speed collision.
Heat Transmission Is Minimized: By decreasing heat transmission to the substrate, the HVOF method lowers the chance of thermal deformation or deterioration.
Treatment after Thermal Spray Coating (Optional):
Finishing: To obtain the necessary surface polish and dimensional precision, post-coating procedures like machining or grinding may be used, depending on the application.
