Vacuum Shot Blasting Machine

  1. Home
  2. Vacuum Shot Blasting Machine
Product Overview

Vacuum Shot Blasting Machine

Price Range: ₹3Lakh - 8Lakh

Get In Touch

Enquiry

Watch Video

Specification
Blasting capacity
3-5 mtr\hr with 6mm nozzle
Overall dimensions
800mm X 2000mm X 2200 mm
Machine type
Automatic/ mannual/ semi automatic
Compressed air required
90 CFM / min at 6.33 sq mtr/hr
Type of nozzle required
Tungsten carbide
Principle
Pressure type.
Type of dust collector
Fabric bag dust collector /Reverse pulse jet pleated filter type dust collector.
Cleaning of dust bags
Motorized shaking\ pulse jet air
Additional Information
Color
As per client requirement
Country
India
Brand
Micro Blaster
Delivery Time
15-20 Days
Production Capacity
4
Packaging Details
Polly Pack With Bubble Packing
Application
  •   On difficult job sites, vacuum blast using garnet or steel shot abrasive.
  •   Containment of tanks, bridges, and facilities.
  •   Projects that require recycled abrasive media.
  •   Environmentally friendly
  •   No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.
  •   Closed-circuit blasting saves on abrasive media utilization costs.
Product Details

Vacuum Shot Blaster Machine

Vacuum shot blasting machines provide a dust-free environmentally friendly blasting solution that is easy to use, versatile in nature, and powerful.

Vacuum shot blasting machines are suitable for different purposes, applications for surface preparation before coating, painting and need only one man to operate thus it has easy operating principles. There are various blasters based on pressure vessels in combination with compressed air filters and pressure regulators that provide sufficient velocity for blasting operation in a dust-free environment. Abrasive media is automatically and instantly recovered for reuse. No flying dust & abrasive material is there in the air to contaminate the surrounding.

The process is safe and dust-free thus other production processes can be carried out simultaneously close to the blasting operation.

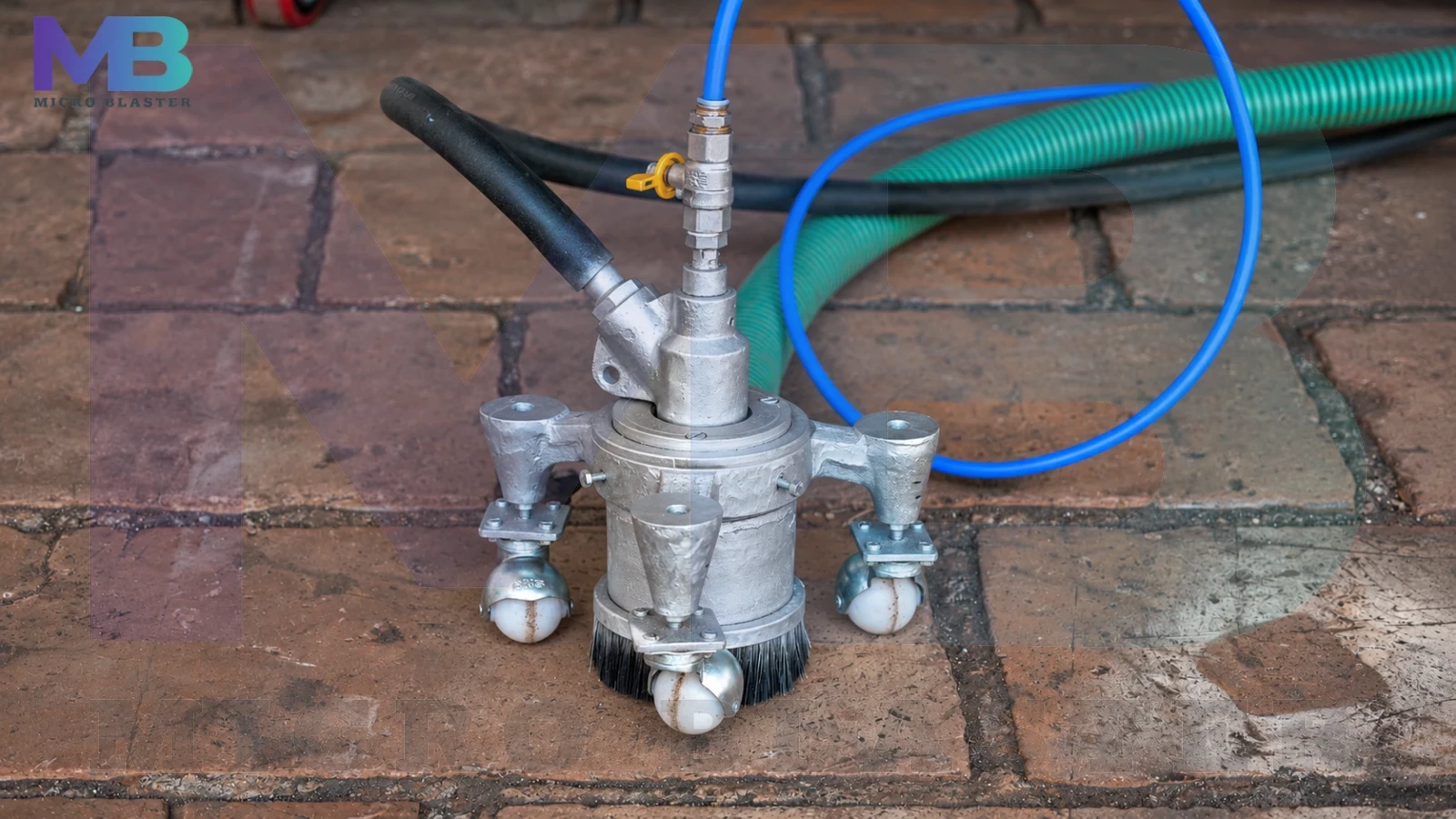

A special valve on the pressure blasting machine vessel allows working with a blasting pressure as low as 1 bar and as high as 7 bars with the same machine. The vacuum shot blasting technique can be utilized on delicate blasting jobs were blasting on low pressures is a must. A vacuum shot blasting comes beside a specific lightweight blaster head, blaster, and vacuum hose/pipe assembly, as well as a collection of brushes to treat flat surfaces as it needs to move from one site to another for its easy operation. The very special fibers are used in brushes to provide the best performance and economy.

Powerful benefits of Vacuum shot blasting machine

  • 100% dustless operation because of wholly automated blasting & vacuum start/stop sequence provider.
  • Clean and abrasive materials-free target surface after blasting.
  • No time-loss through automated filter cleaning and dust removal is available.
  • Easy disposal of dust collected in plastic bags.
  • The unit can be relocated and/or transported easily as it is portable in nature.
  • A wide range of brushes are available to fit all (flat, cornered, radius) surfaces

Quality of Vacuum shot blasting machine includes

  • Wear-resistant metering valve commands all abrasive material or media (also steel grits, fine aluminum oxide, etc.)
  • Become a separate main air valve that provides almost wear- and maintenance-free use.
  • Have a spray-painted, galvanized and non-ferrous fittings.
  • Provide complete safety.

Environmentally friendly

  • No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.
  • Closed-circuit blasting saves on abrasive media utilization costs.
